30 Meter BJT QRP Transceiver
Rolf Heine, DL6ZB

On a rainy Saturday afternoon, I searched through my collection of spare parts for a suitable connector to fabricate a cable. During this pursuit, I stumbled upon a small bag containing 10111 kHz crystals.

Inspired by the discovery, I decided to harness the potential of these crystals by conceptualizing a minimized QRP transceiver tailored for the 30-meter band.

The result is a dedicated 30-meter single-band transceiver boasting an RF output of approximately 1.5 watts, covering a tuning range from approximately 10108 to 10122 kHz.

The primary design objective was to make a QSK transceiver employing just 5 BJTs and a custom-built diode ring mixer. This TRX provides a frequency range of at least 10 kHz by adjusting the oscillator crystals, employing a direct conversion receiver configuration.

All utilized are standard and readily available, with the exception of the crystals, sourced from miscellaneous parts. The depicted version features an IE-500 diode ring mixer.

This transceiver incorporates two oscillators. One for receiving and another for transmitting which permits frequency offsetting of the transmitter frequency. This results in a transmit frequency shift during transmission, thereby generating a sidetone in the receiver section. The high isolation of the RX/TX antenna relay ensures a satisfactory level of AF sidetone.

The AF amplifier necessitates a high-impedance load at the output; hence, 2000 Ohm headphones were used. Anti-parallel germanium diodes at the AF output are a good choice for limiting the audio frequency to a comfortable level when encountering strong signals at the antenna input.

An alternative version integrates an additional AF filter exhibiting a frequency peak of around 700 Hz. Notably, the 4700 uH inductors employed are FASTRON 07P-472J-51.

A Zener diode ZD33 is positioned at the collector of the output BJT 2N3553 to safeguard against potential damage to the output transistor if there's an antenna mismatch or sudden antenna disconnection during transmission. This protective measure prevents immediate damage to the output transistor in the absence of a load during transmission.

While the 2N3553 transistor may pose procurement challenges, any other low-power RF transistor rated at 2 watts, such as 2N3866 or even a BD135, can serve as a substitute. BS170 FETs may be worth a try.

The enclosure utilized originates from Otto Schubert GmbH, Germany, Case No. 6, measuring 111 x 55 x 30 mm (L x W x H).

More information here:
http://www.schubert-gehaeuse.de/weissblechgehaeuse.html


Click on schematic and pictures for higher resolution.

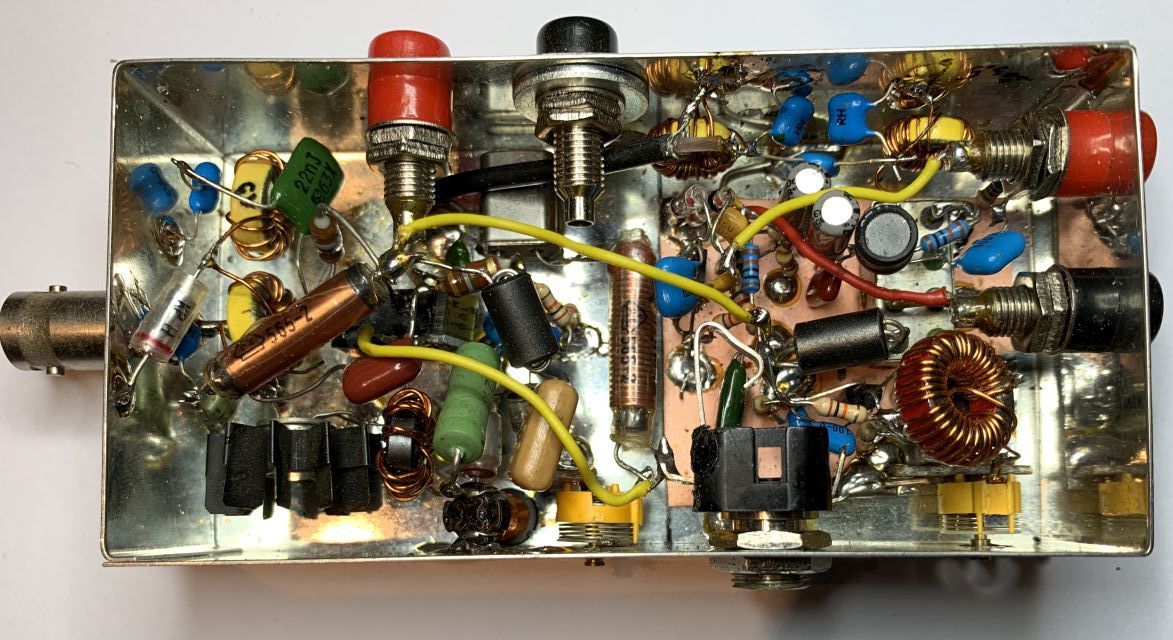

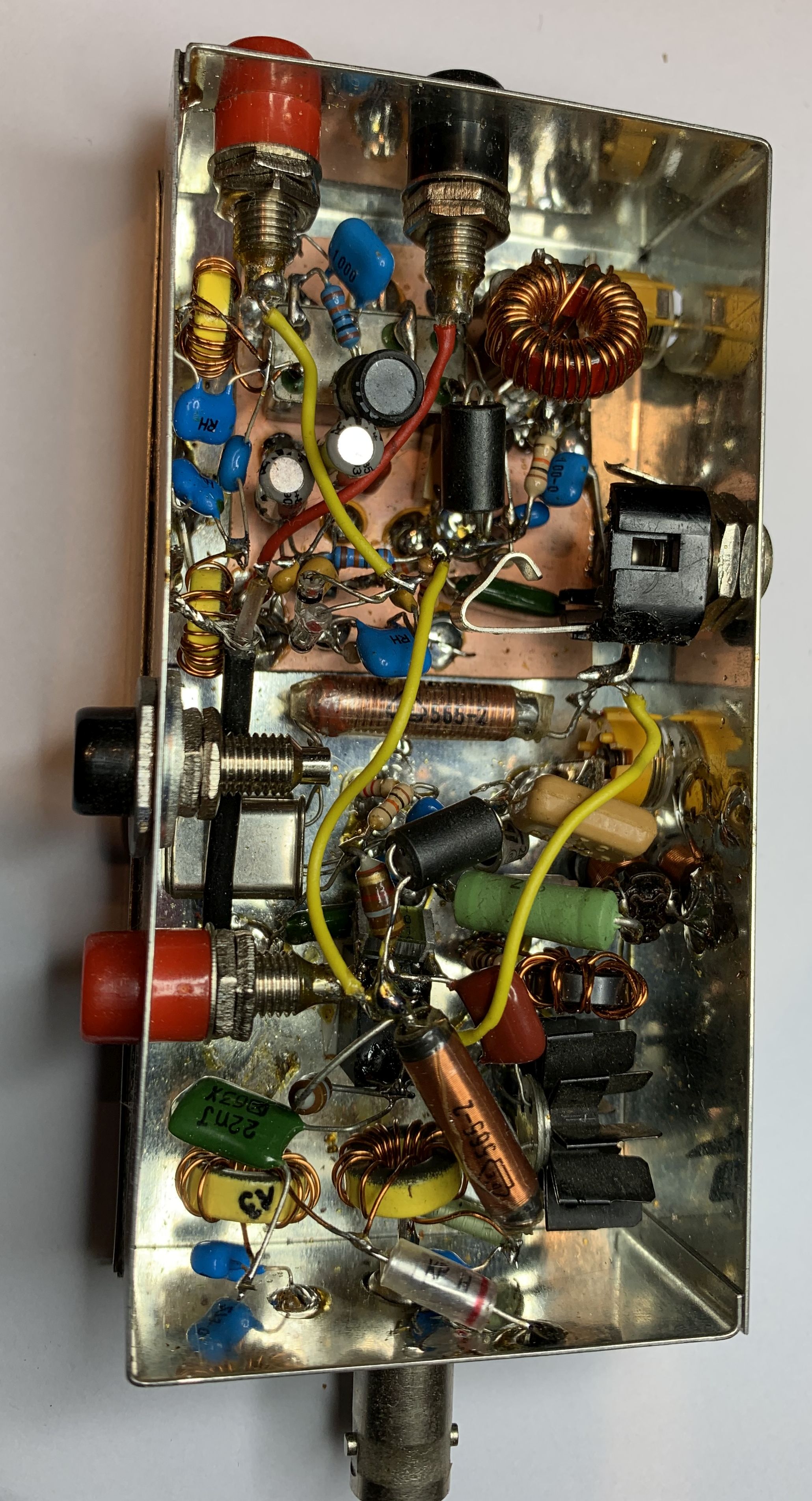

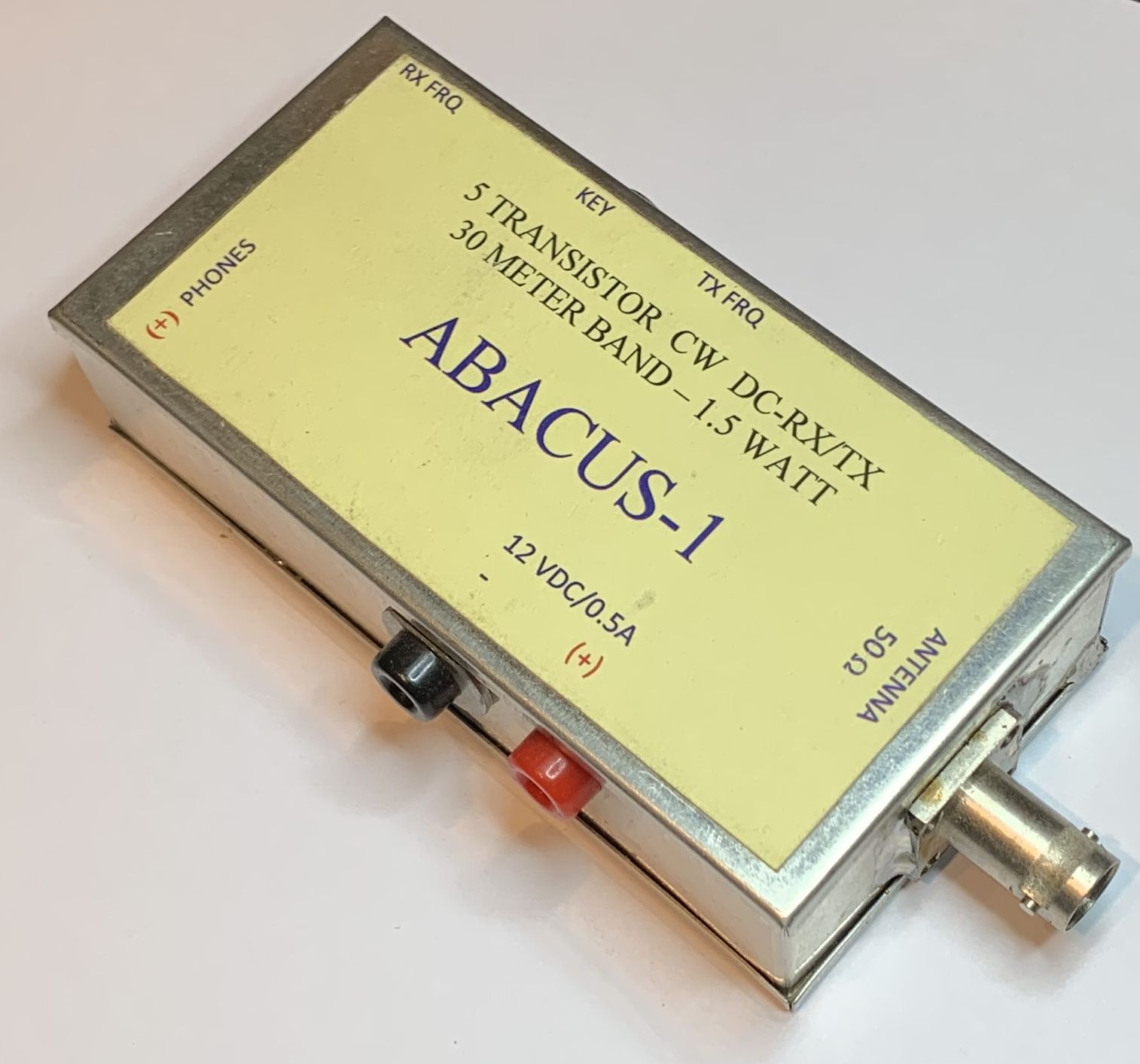

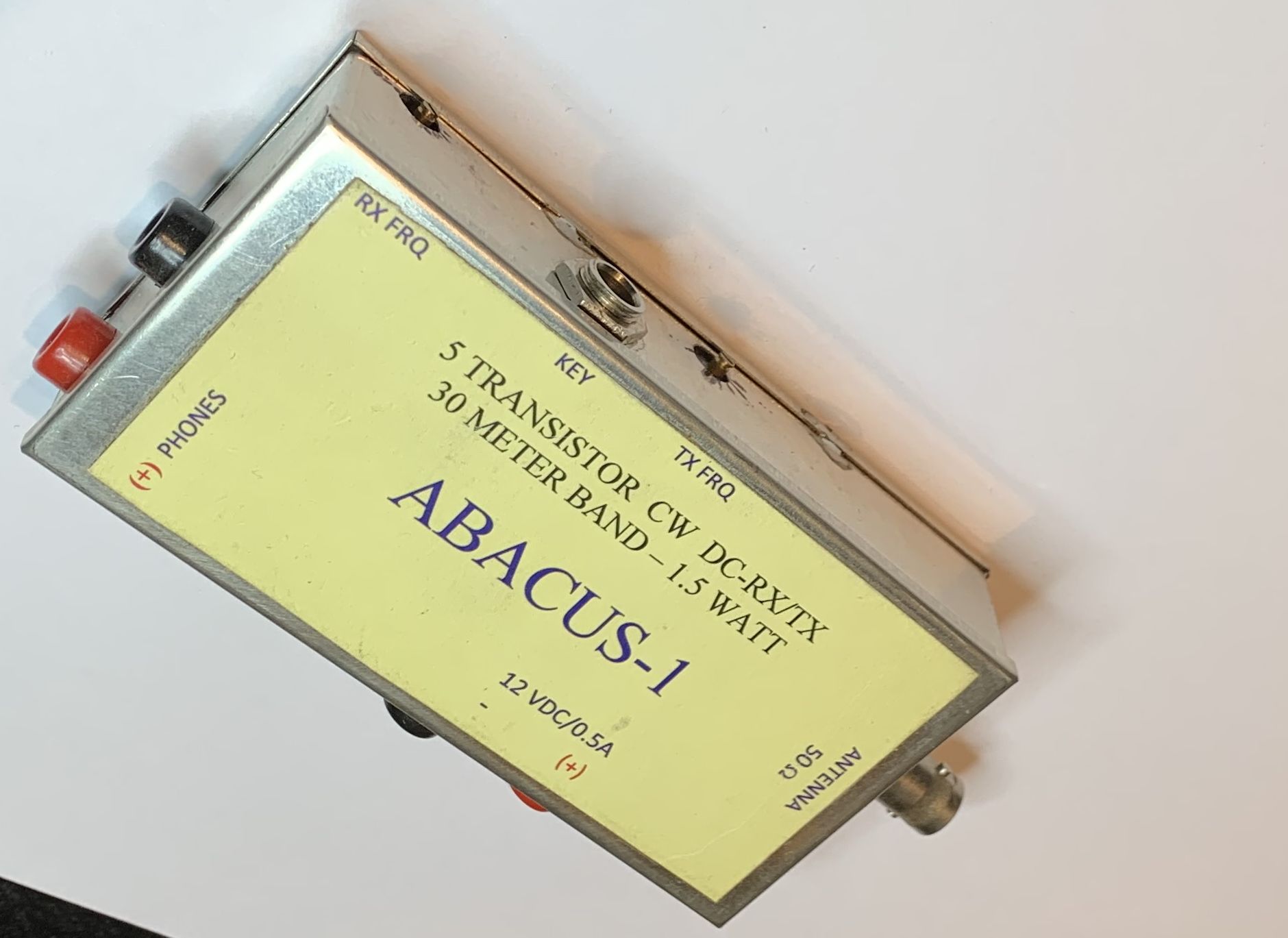

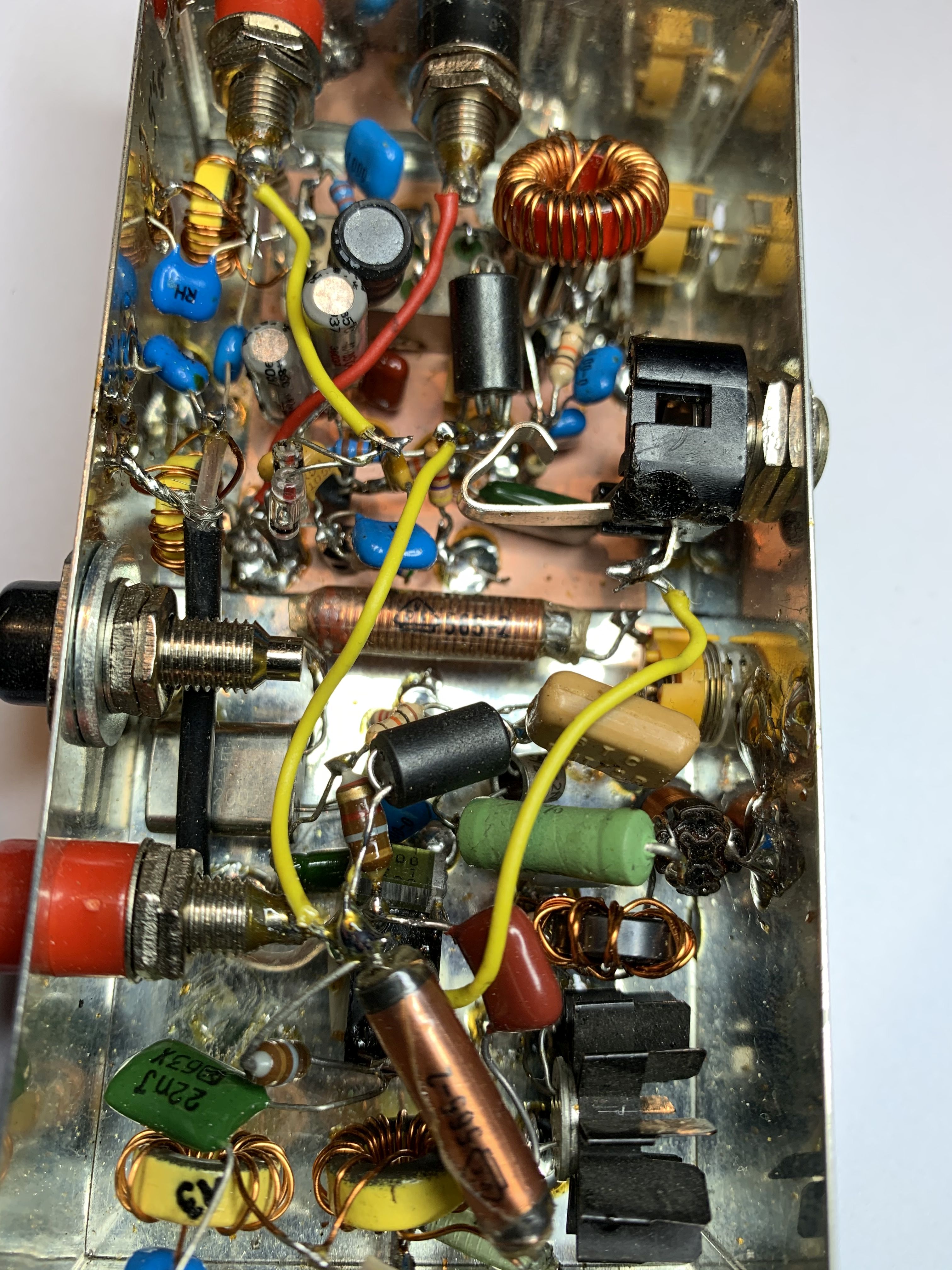

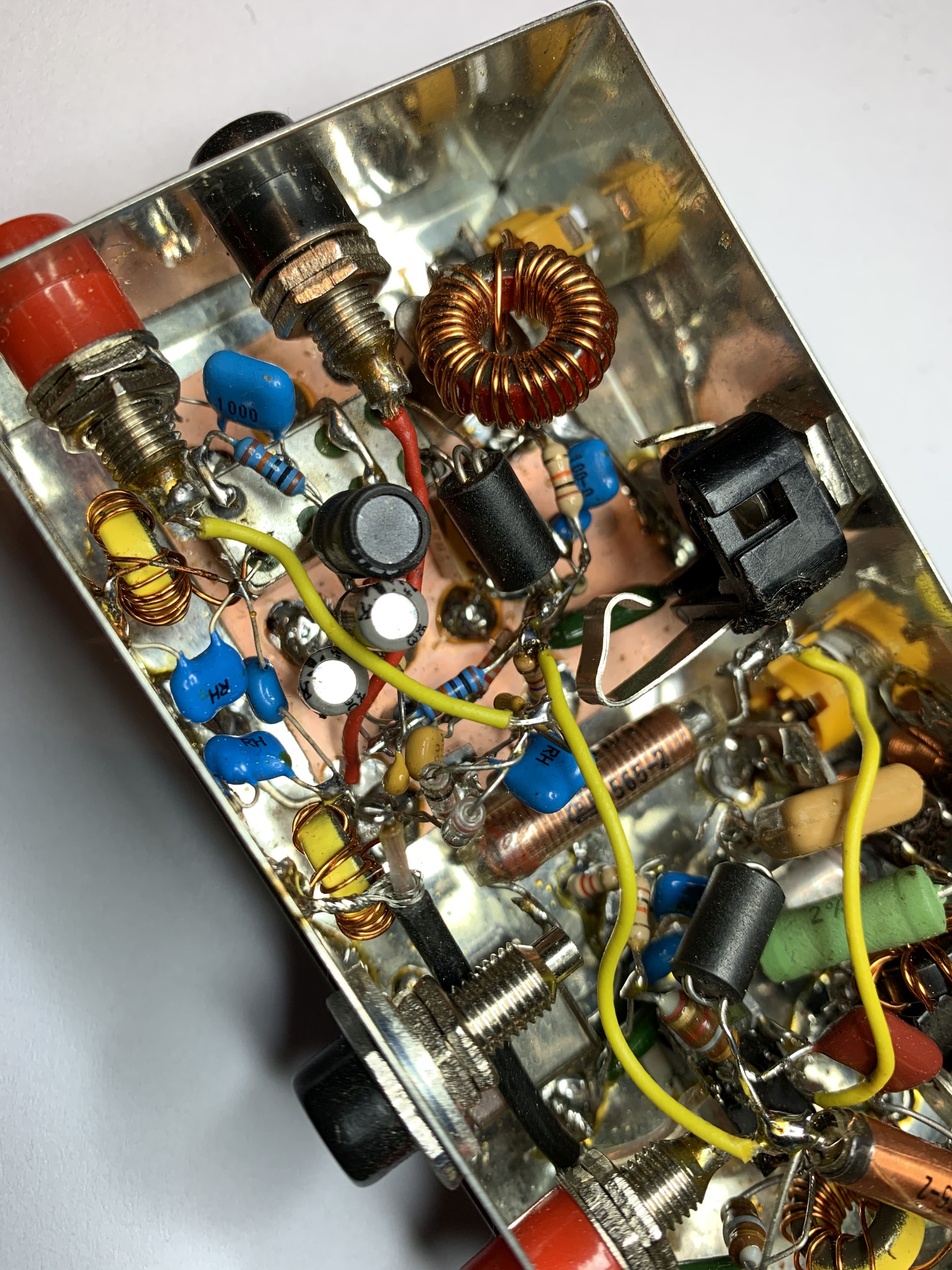

ABACUS-1 FRONT ABACUS-1 REAR ABACUS-1_case_open_1 ABACUS-1_case_open_2 ABACUS-1_case_open_3

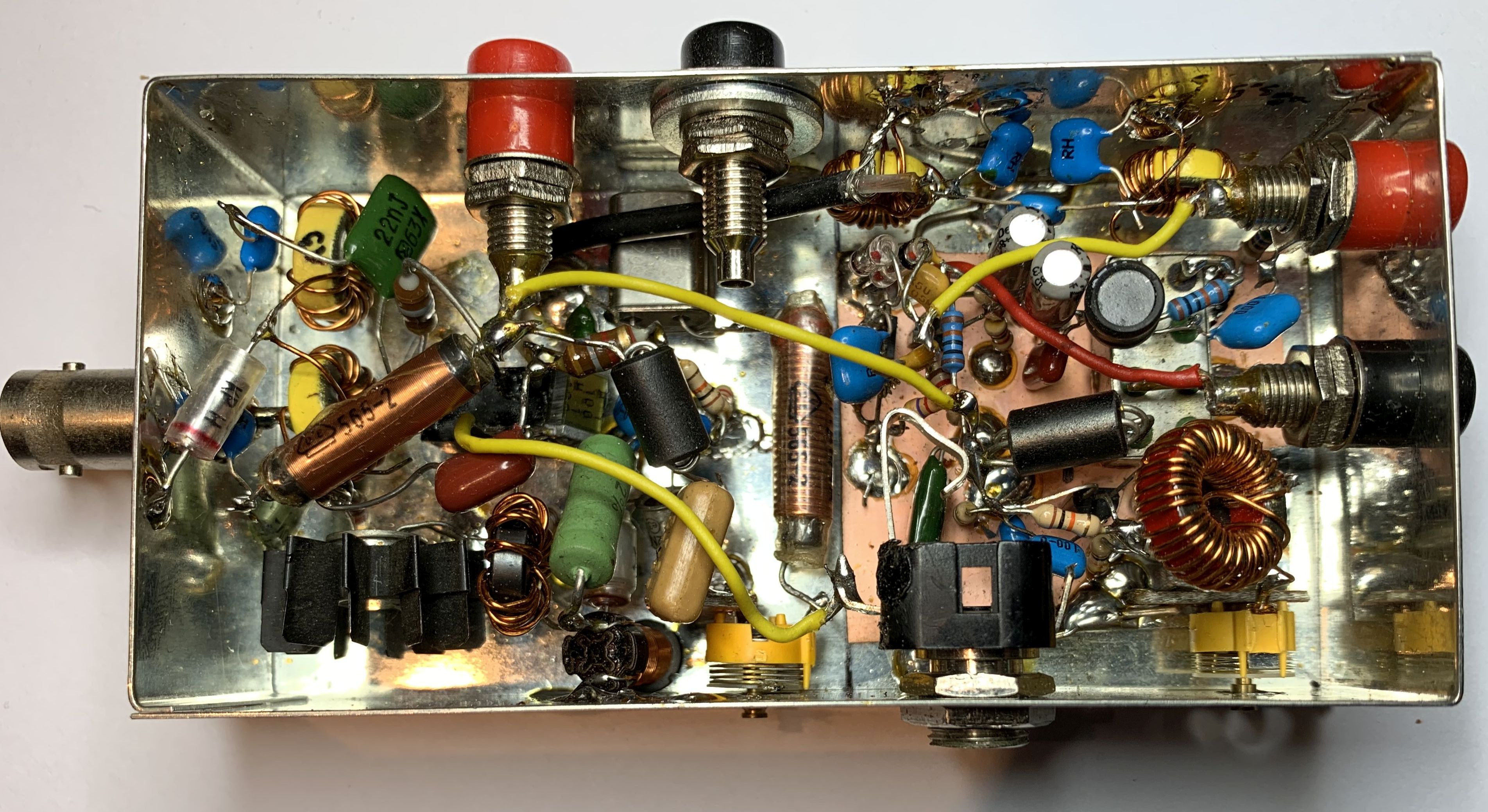

ABACUS-1_case_open_6 open 007

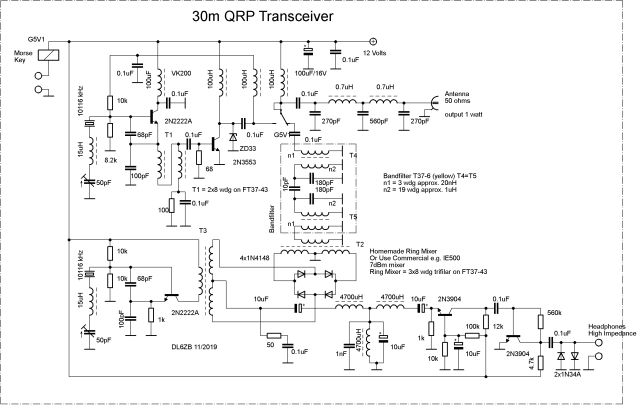

schematic_with_AF_filter

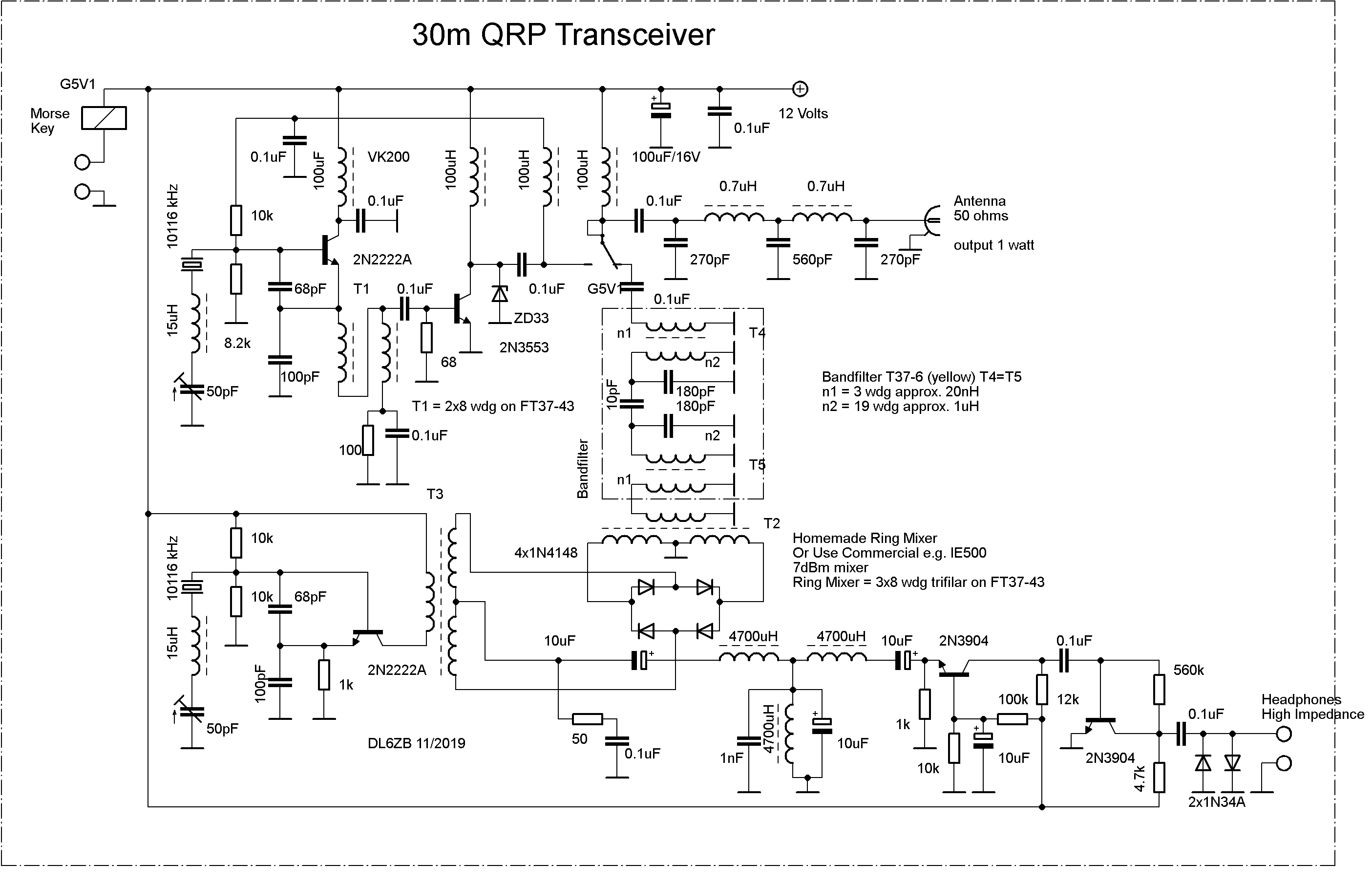

Schematic with AF filter

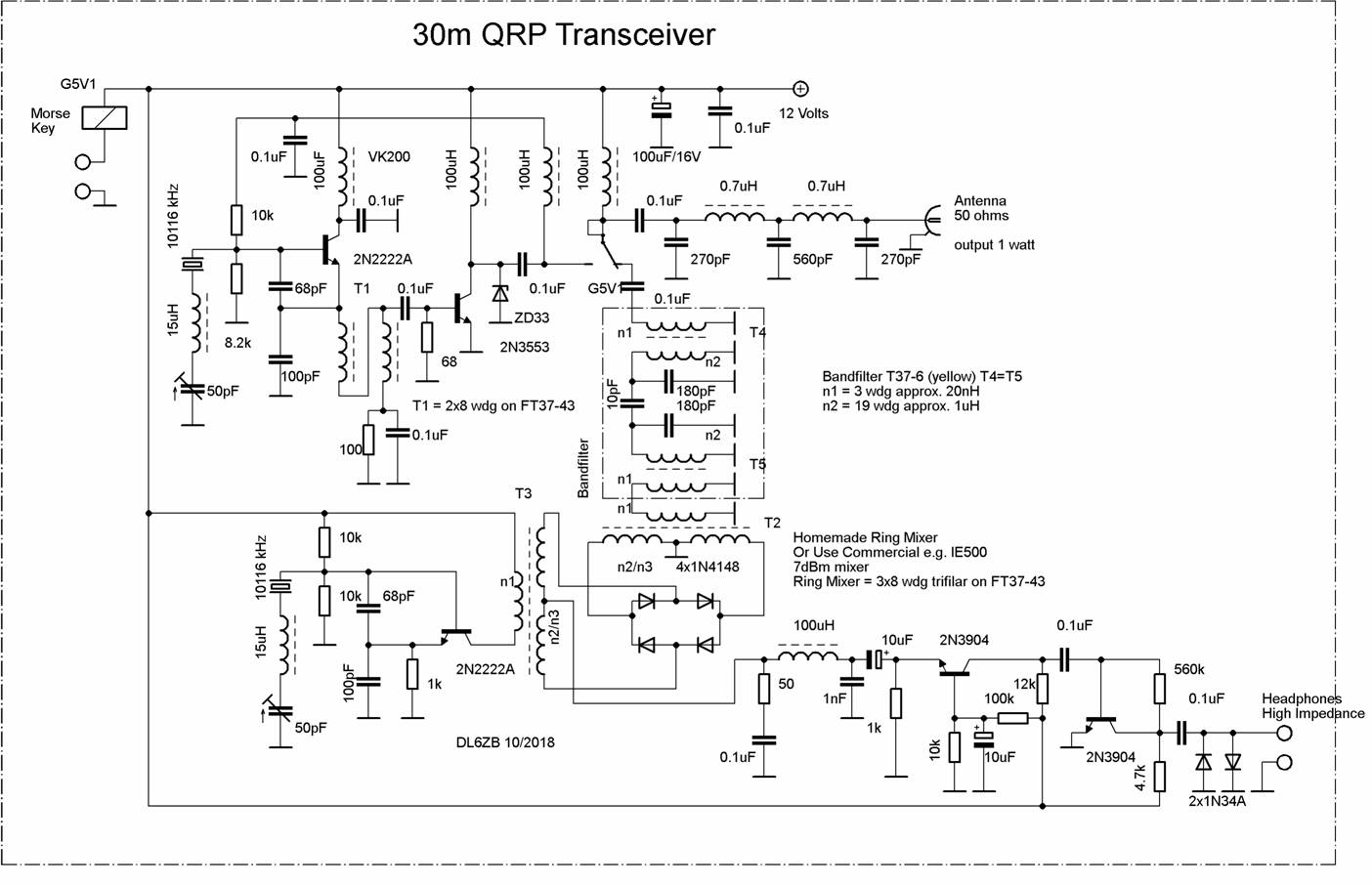

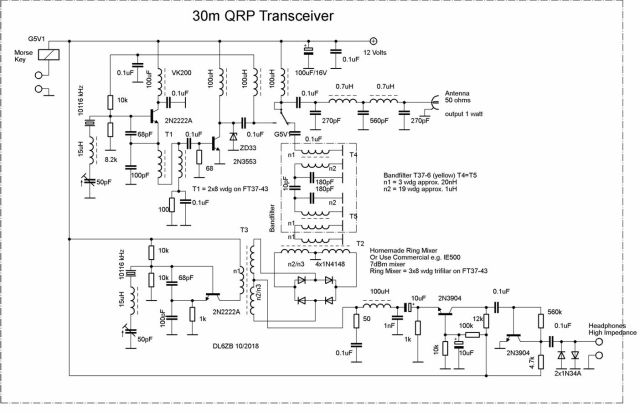

Schematic without AF Filter
Schematic without AF filter

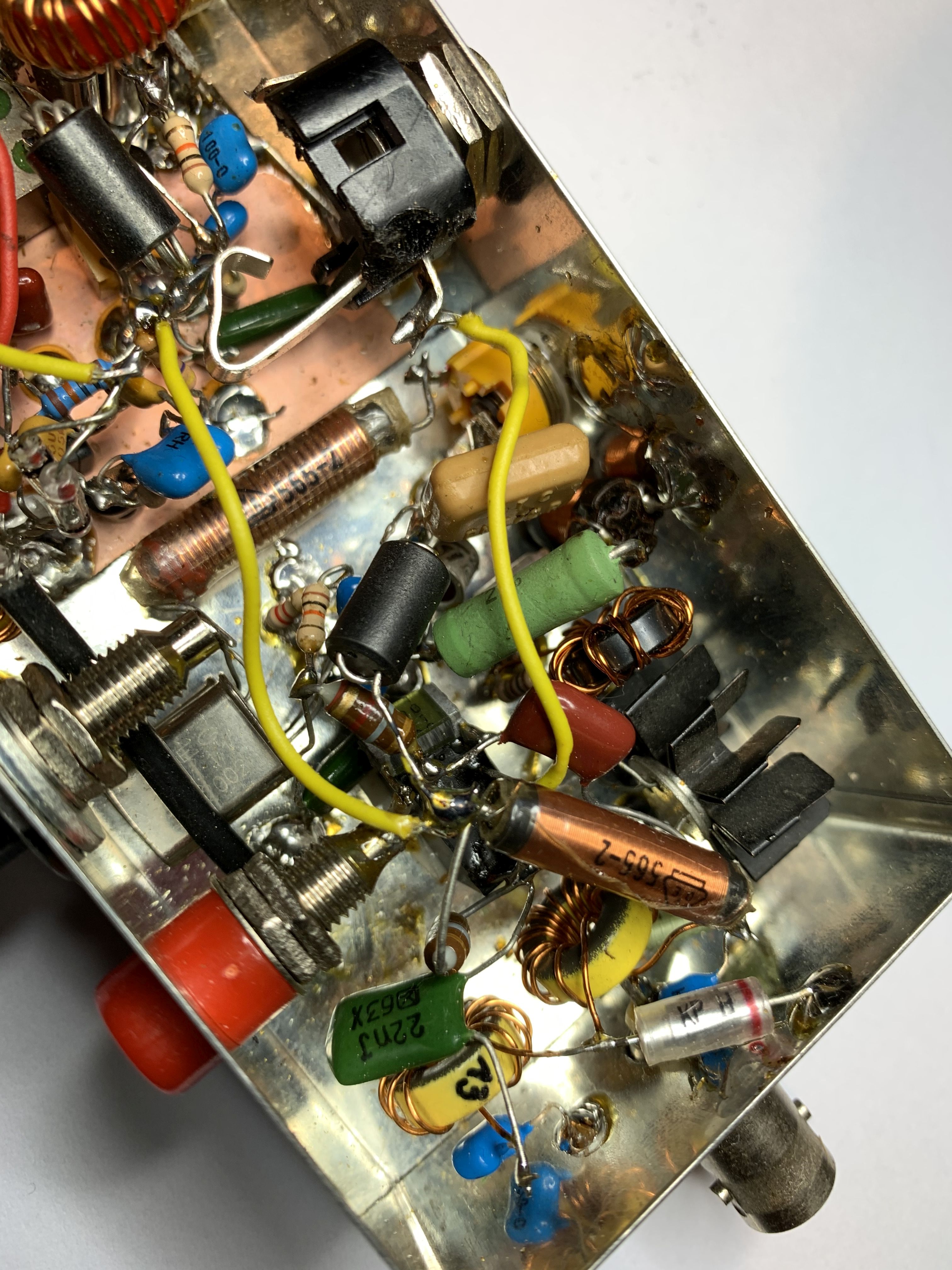

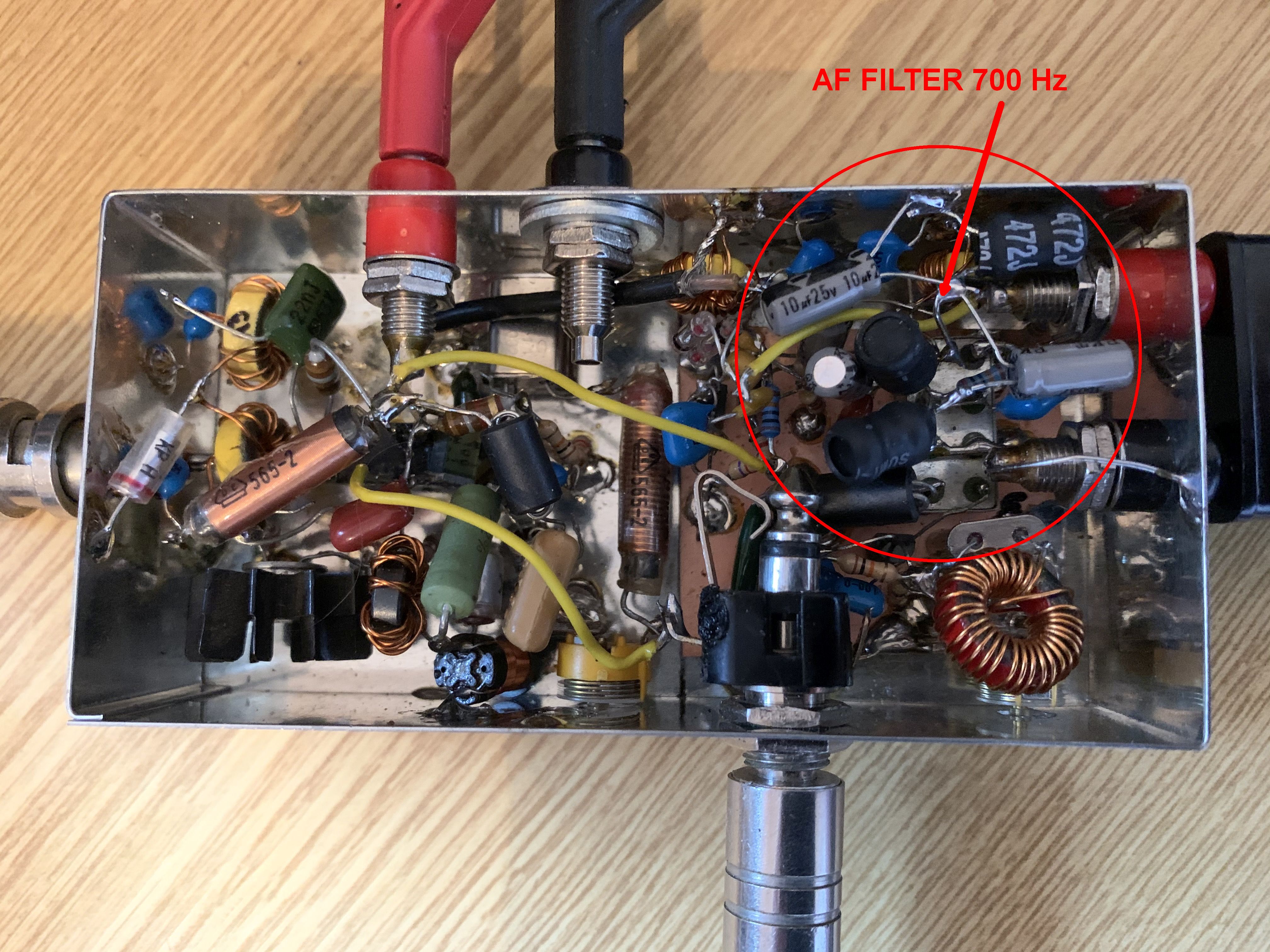

AF filter installed
